| CONTENT | VALUE |
|---|---|
| COLOR | WHITE,WARM WHITE,RED |
| COLOR TEMPRATURE | 12000K,3000K,4000K,6500K |
| POWER | 1.8 WATT |
| CRI | 70-80 |
| OPERATION POWER | DC-12V |
| SIZE | 72MMX15MMX8MM |
| LANCE BEAM ANGLE | 160* DEGREE |
| TEMPARATURE | 0 TO 70 |
| QUANTITY STRING | 20 NOS |
Features
- Constant Voltage Driven
- Long service life up to 50000 Hours with 3 Years Warranty
- Epistar (99.9%) Gold Thread , pure copper,bracket Coated with silver LED.
- High Pressure Injection Molded Casing.
- Special Clear Lance Design (160*) Degree Beaming angle with equal Light.
- Easy Installation with double side Quality Taping for Assured Installation.
- High Luminous Efficiency Up to 110 Lm/W.
- IP65 Waterproof
Beam angle : 160°
Application
Applicable in 50mm to 150mm depth acrylic and channel le, Light Box and Glow Sign Board.

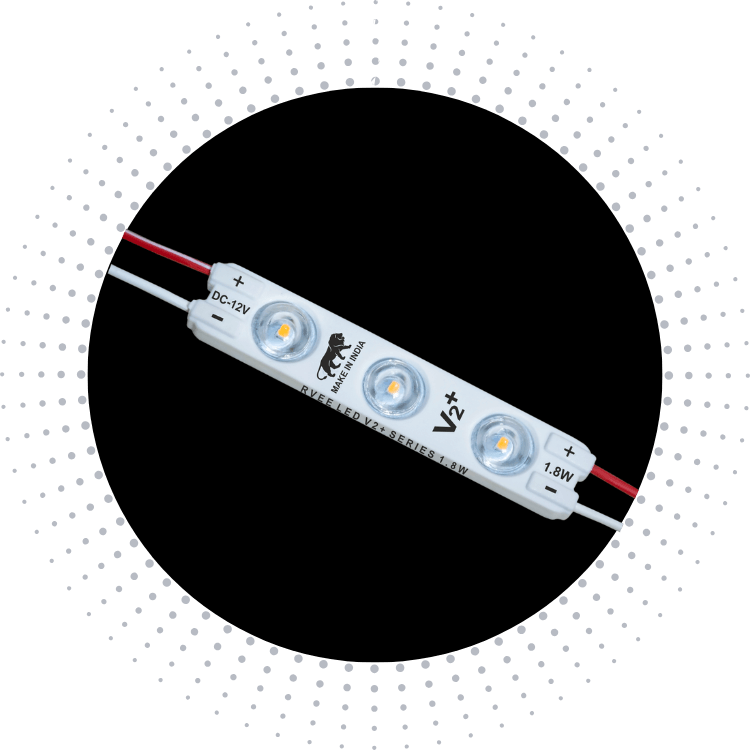

LED Module For Sign Channel Letters and Lightbox
Key Features of LED Modules for Signage
- Waterproof and Weather-resistant: Many LED modules are designed to withstand harsh weather conditions, ensuring reliable performance in outdoor environments.
- Color Options: LED modules come in various colors, including white, red, green, blue, and RGB options, allowing for creative and dynamic sign designs.
- Easy Installation: Most LED modules are designed for easy installation, with pre-drilled holes, adhesive backing, or mounting clips to simplify the process.
- Low Heat Emission: LEDs emit very little heat compared to traditional bulbs, reducing the risk of damage to the sign materials and surrounding structures.
- Dimmable and Programmable: Advanced LED modules can be dimmed or programmed to create different lighting effects, enhancing the visual appeal of the sign.
Applications
- Channel Letters: LED modules are ideal for illuminating channel letters, providing consistent backlighting that enhances the visibility and attractiveness of individual letters.
- Lightboxes: LED modules are used in lightboxes to provide even, edge-to-edge illumination, ensuring that graphics and text are uniformly lit and stand out clearly.
- Architectural Signage: Beyond traditional signs, LED modules can be used in architectural lighting to highlight building features, adding a modern and dynamic touch.
- Retail and Commercial Signage: From storefronts to interior signs, LED modules enhance the visual impact, drawing customers’ attention and reinforcing brand identity.
- Event and Exhibit Signage: For temporary displays or trade show exhibits, LED modules offer a portable and effective lighting solution that enhances visibility and engagement.
