| CONTENT | VALUE |
|---|---|
| COLOR | C.Wh,W.Wh,R |
| COLOR TEMP | 3000K/4000K/65000K |
| POWER | 1.5 WATT |
| CRI | 80+ CRI |
| OPERATION POWER | DC - 12V |
| SIZE | 72MMX16MM X 6MM |
| LANCE BEAM DEGREE | 175 DEGREE |
| TEMP. | 0 TO 70 |
| QTY. STRING | 20 MODULE PER CHAIN |
Features
- Low voltage operation, constant current driven design.
- Long lifespan 5 years warranty Rated for 40000-50000 hr.
- Uses Osram LED for superior brightness and reliability.
- Special crystal clear lens design (175°) degree beaming angle with equal light.
- Easy installation with double-sided VHB quality tape for assured installation.
- High luminous efficiency up to 130 Im/watt.
- IP 66 rating for dust and water resistance.
- compact design easy to fit into tight or customized spaces.
Beam angle : 175°
Application

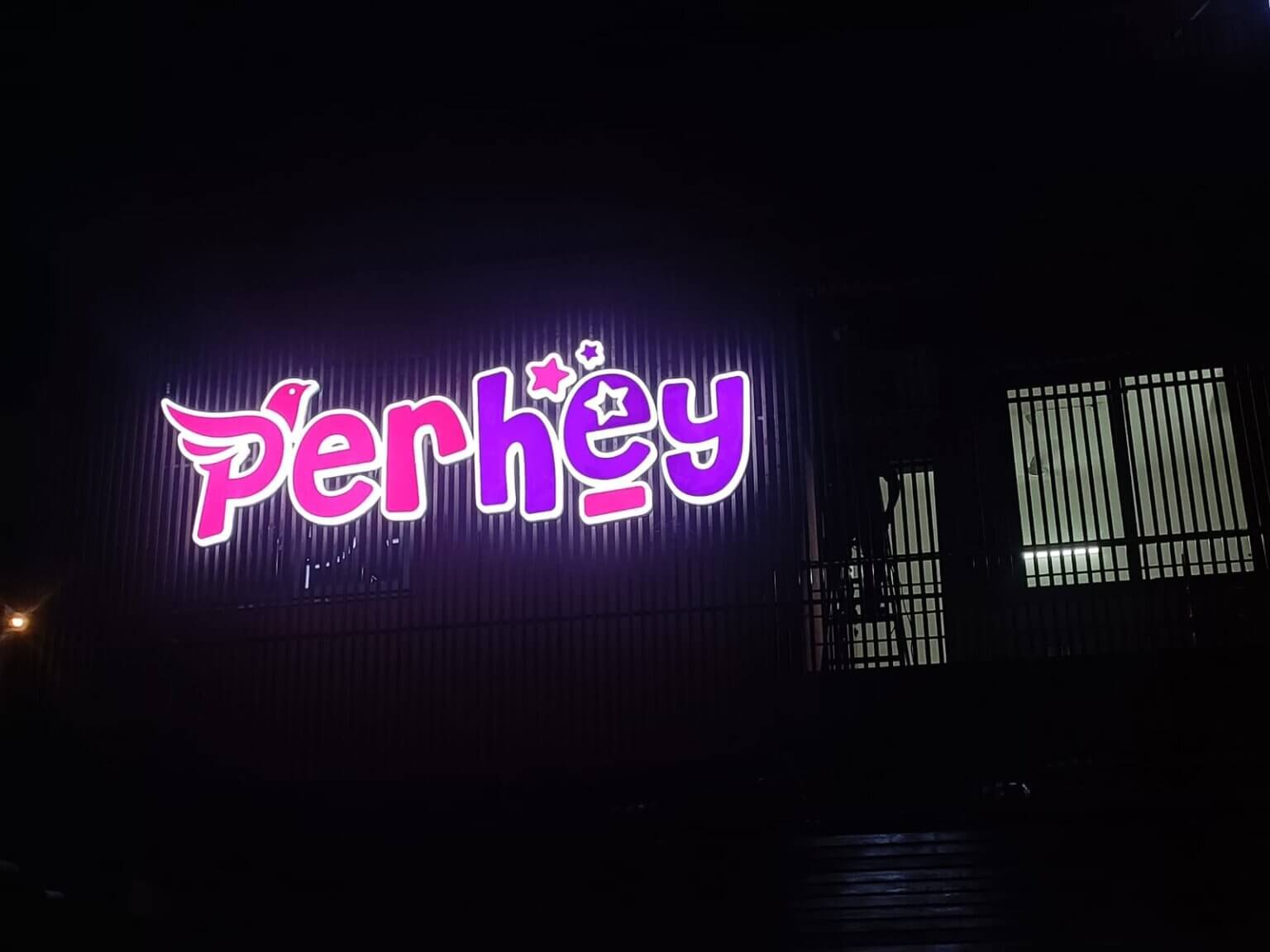

Applicable in 50mm to 150 mm depth acrylic channel letters and light box.
LITEX-3 SERIES
RVEE LED’s Litex-3 Series modules are designed to provide cost effective and consistency quality for channel letter and sign boards available in 3 SMD conhgurations with OSRAM LED.
