| CONTENT | VALUE |
|---|---|
| COLOR | COOL WHITE,WARM WHITE |
| COLOR TEMPRATURE | 10000K |
| POWER | 2.5 WATT |
| PCB INFORMATION | ALUMINIUM 1.2MM WITH 35MICRON COPPER |
| OPERATION POWER | 220V TO 250V |
| SIZE | 52MMX42MMX13MM |
| LANCE BEAM ANGLE | 160 DEGREE |
| TEMPRATURE | 0 TO 70* |
| QUANTITY STRING | 12 NOS |

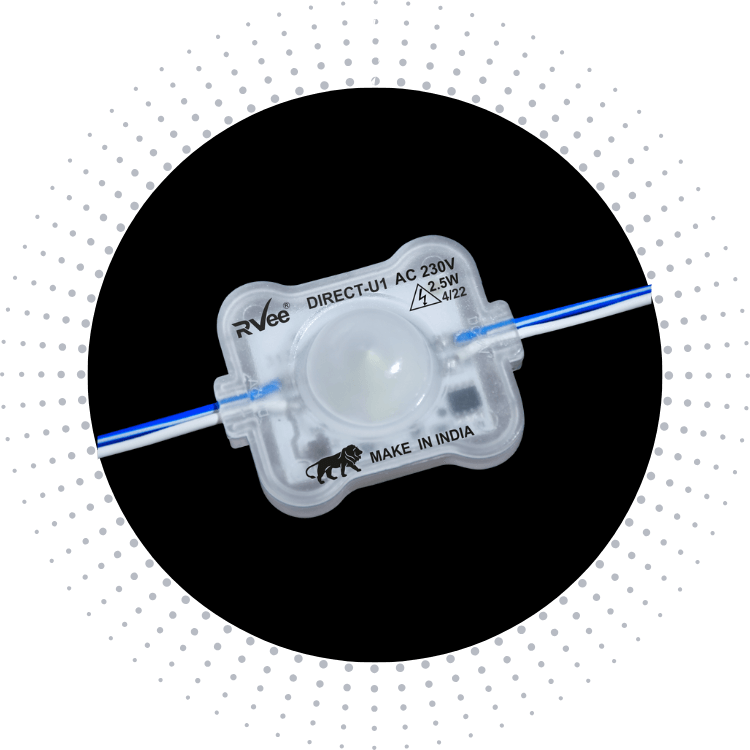

ULTRA GLOW (U1 – AC) SERIES
RVEE LED’s Ultra Glow (U1-AC) Series modules are designed to provide cost-effective and consistent high quality illumination for glow sign boards. These modules are available in 230V AC direct configurations.
Features
- No need for external power supplies, simplifies installation for large signs.
- Long lifespan: Rated for 40000 hr.
- high brightness output requiring long viewing distances.
- Long distance wiring: handles voltage drop better over.
- AC longer cable runs compared to DC systems.
- Easy maintenance : Modules are often modular and replaceable without dismantling the full sign.
- Special crystal clear lens design (160°) degree beam angle with equal light.
- asy installation with double-sided VHB quality tape.
- IP 65 rating for dust and water resistance.
Beam angle : 160°
Application
Aapplicable in light box, big channel letter, glow sign board Product Depth Cx Cy Surface illuminance
depth 7 to 12 inch You can use series distance with 10 inch.
