| CONTENT | VALUE |
|---|---|
| COLOR | C.Wh.,W.Wh.,RED,GREEN, BLUE, YELLOW |
| COLOR TEMP. | 3000K/6500K/10000K/15000K |
| POWER | 0.8 WATT |
| CRI | 80+CRI |
| OPERATION POWER | DC - 12V |
| SIZE | 40MM X12.7MM X 6MM |
| LANCE BEAM DEGREE | 160° DEGREE |
| TEMP. | Ο ΤΟ 70° |
| QTY. STRING | 20 Modules Per Chain |

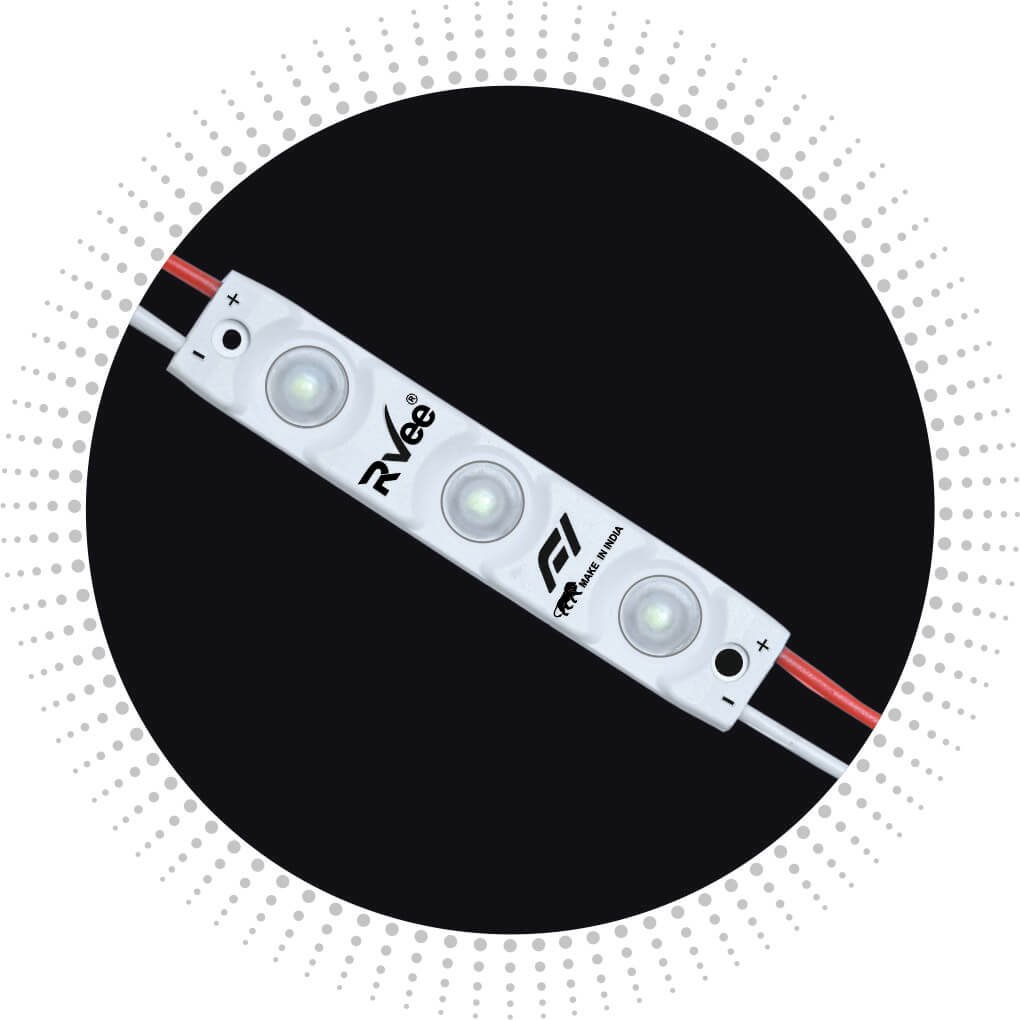

F1 SERIES SINGLE LENCE
RVEE LED’s F1 Series Single lence modules designed to provide cost effective and consistencyquality for small channel letter and sign boards available in 3 SMD conigurations.
Features
- Constant voltage driven design.
- Long service life up to 40000 Hrs. with 3 years Warranty.
- Epistar gold thread, pure copper, bracket coated silver LED.
- High pressure virgin pvc injection moulded casing.
- Special crystal clear lens design (160°) degree beaming angle with equal light.
- Easy installation with double-sided VHB quality tape for assured installation.
- High luminous efficiency up to 120 Im/watt.
- compact design, IP 65 rating for dust and water resistance.
Beam angle : 160°
Application
Applicable in 50mm to 200 mm depth acrylic and small channel
letters and light box.
