| CONTENT | VALUE |
|---|---|
| COLOR | COOL WHITE/WARM WHITE |
| COLOR TEMP | 10000K / 3000K |
| POWER | 3 WATT |
| LM PER WATT | 130 |
| OPERATION POWER | DC-12V |
| CRI | 70-80 FOR WHITE |
| SIZE | 50MM X 50MM X 7MM |
| LANCE BEAM DEGREE | 170° DEGREE |
| TEMP. | 10° TO 65° |
| PCB MATERIALS | ALUMINIUM 1.2mm 35u |
| QTY. STRING | 20 NOS. |

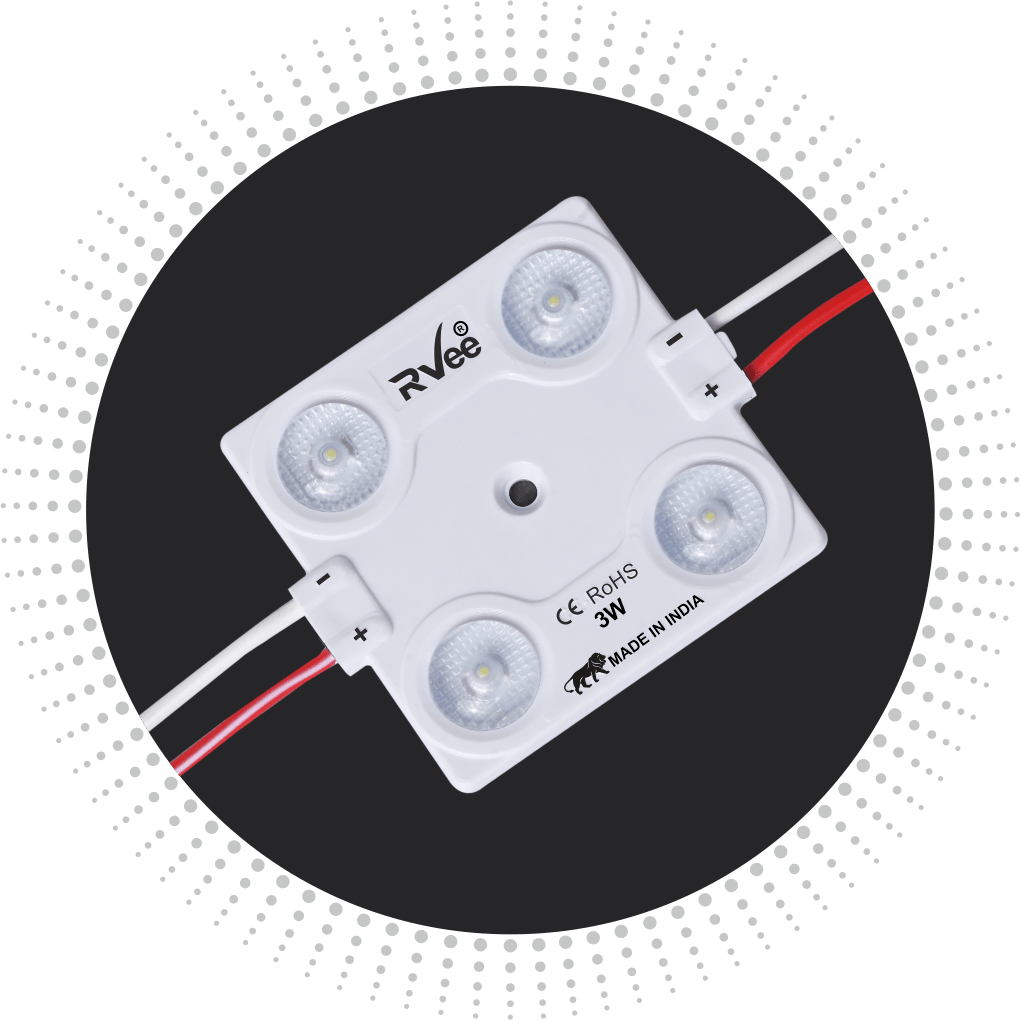

GLOWLIT SERIES
RVEE LED’s GLOWLIT Series modules are designed to provide cost effective and consistency
quality for glow sign boards, available 12V DC input voltage and constant voltage design,
they ensure consistent durability.
Features
- Constant voltage driven design.
- Long service life up to 40000 Hrs. with 5 years Warranty.
- Epistar gold thread, pure copper, bracket coated silver LED.
- High pressure injection with 100% ABS casing.
- Special crystal clear lens design (1700) degree beaming angle with equal light.
- Easy installation with double-sided VHB quality tape for assured installation.
- High luminous efficiency up to 130 lm/watt.
- IP 67 rating for dust and water resistance.

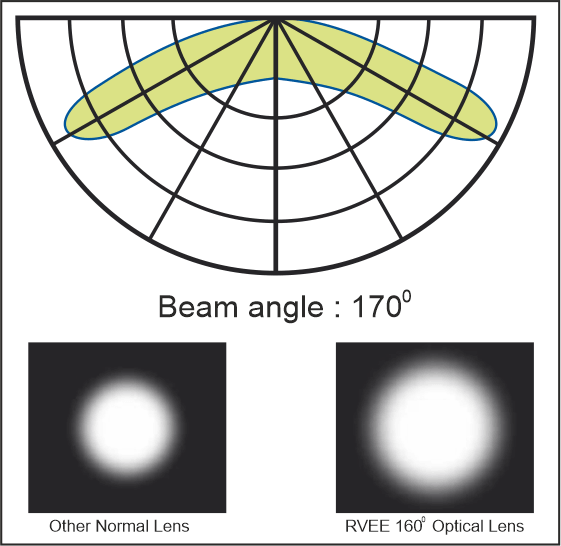

Beam angle : 170°
Applications
Applicable in light box, big hoarding, channel letter,glow sign board depth 5 to 12 inch You can use series distance with 12 inch.
